Modern Steel Wood Grain Metal Siding
Modern woodgrain metal siding crafted from 24 gauge steel
Forma Plank
Forma Plank is stronger than most other siding options. The 40-year paint finish warranty features coatings formulated with a super durable modified polyester resin. This results in superior resistance to fading and environmental weathering. Planks are available in the Solid Color Series, Image Colors Series, and Textured & Specialty Colors Series. Economical, simple, and amazingly versatile, Forma Plank can be used for both exterior and interior applications.
- 5 Layers of Protection are built into every sheet of steel manufactured. This includes an ASTM A792 Or A653 Structural 80,000 Psi Minimum Yield High Tensile Steel Substrate.
- Forma Plank is also rated with Class 4 Impact Resistance.
- 24 ga steel is produced in North America and provides a very competitive and structurally superior commercial-grade wall panel.
- Concealed Fastener Panels
- Interlocking Siding Panels
- Structural Box Rib
- Floating Clip System
- Shiplap Design
- Board and Batten
- Also Large Format Panels Available
- Steel Soffit, Fascia, Underdeck
Board & Batten
Get a longer lifespan and more design possibilities with a steel upgrade on the popular Board and Batten woodgrain metal siding. The integrated battens provide long clean lines and the shadows they create add dimension and interest to any building design, especially in our Textured Colour Series. The panel system provides a 9-3/4” coverage, with a 2-1/4” long batten at a depth of 1/2”, keeping it flush with other popular cladding profiles. Easy installation with a clip system, and no exposed fasteners makes this a simple yet stylish cladding option for residential and commercial applications.

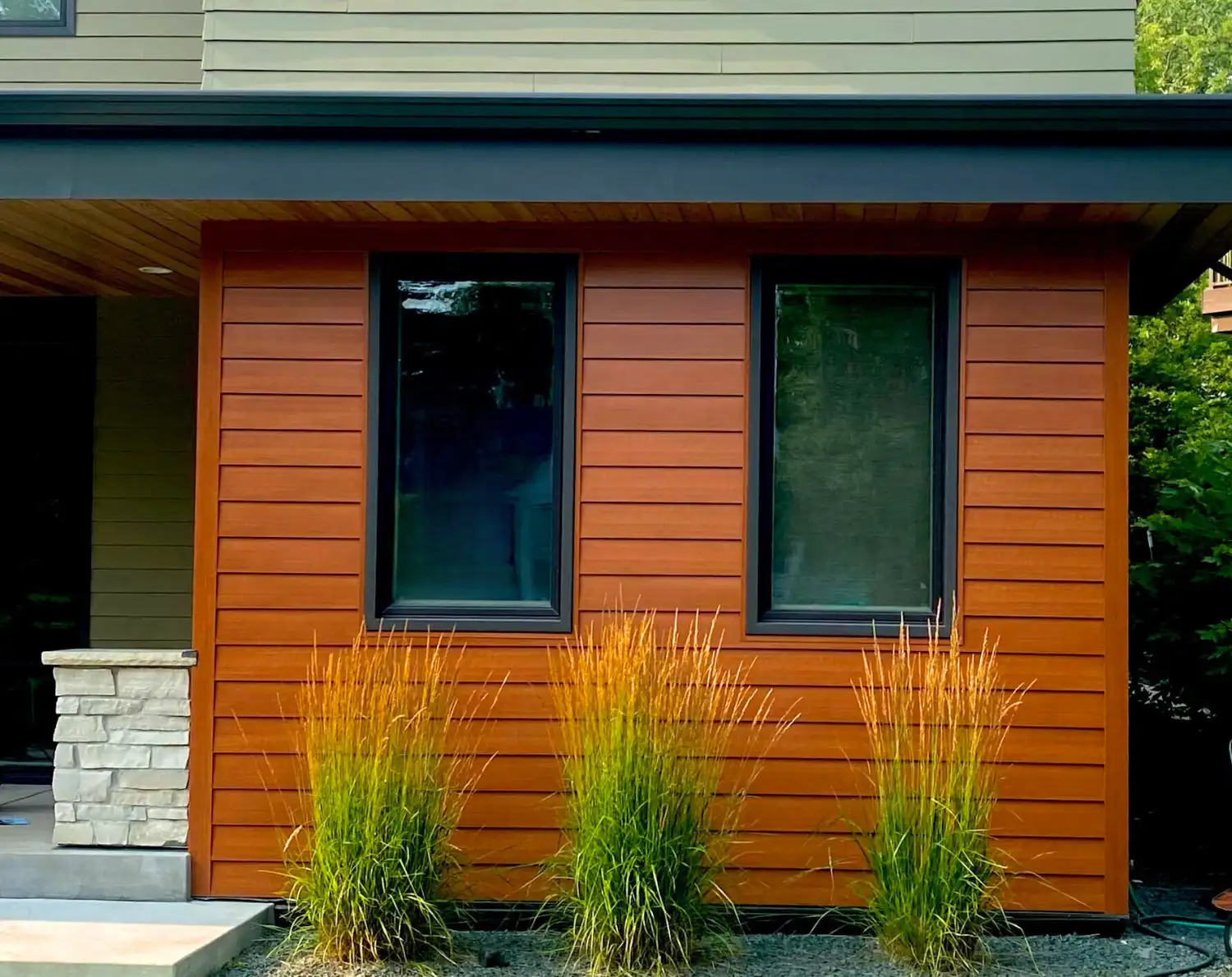

Shiplap
Shiplap faux wood metal siding is another upgrade from a traditional wood-cladding style. The Modern Steel Shiplap panel is an angled plank design, generally installed horizontally, and can be used for both interior and exterior applications. The panel is available in a 6” coverage, with a depth at the widest part just under 1/2”, keeping it flush with most other popular cladding materials. Shiplap pairs well with other Modern Steel cladding options, including 7/8” Corrugated, Forma Plank, and Board & Batten for exterior and interior applications.

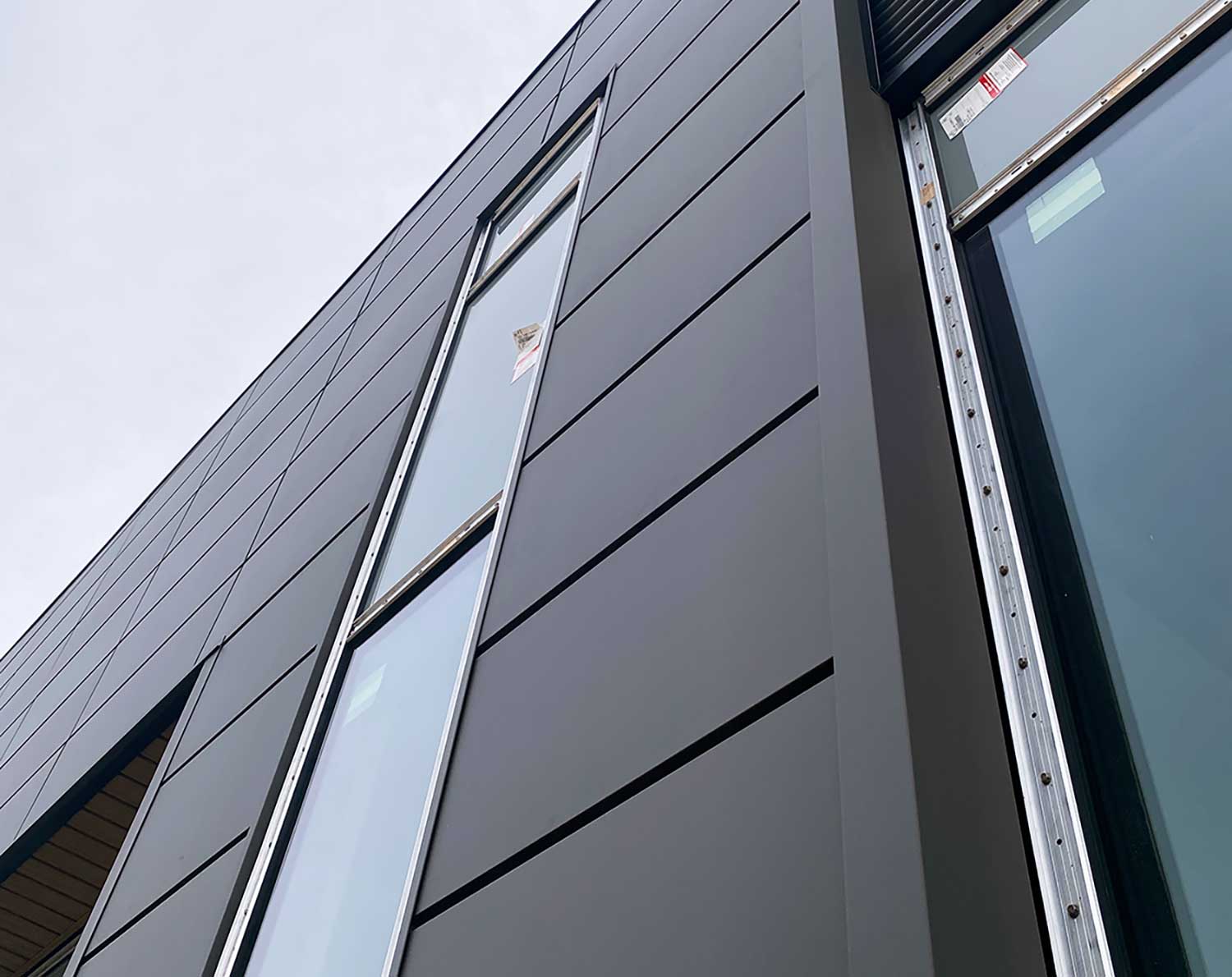

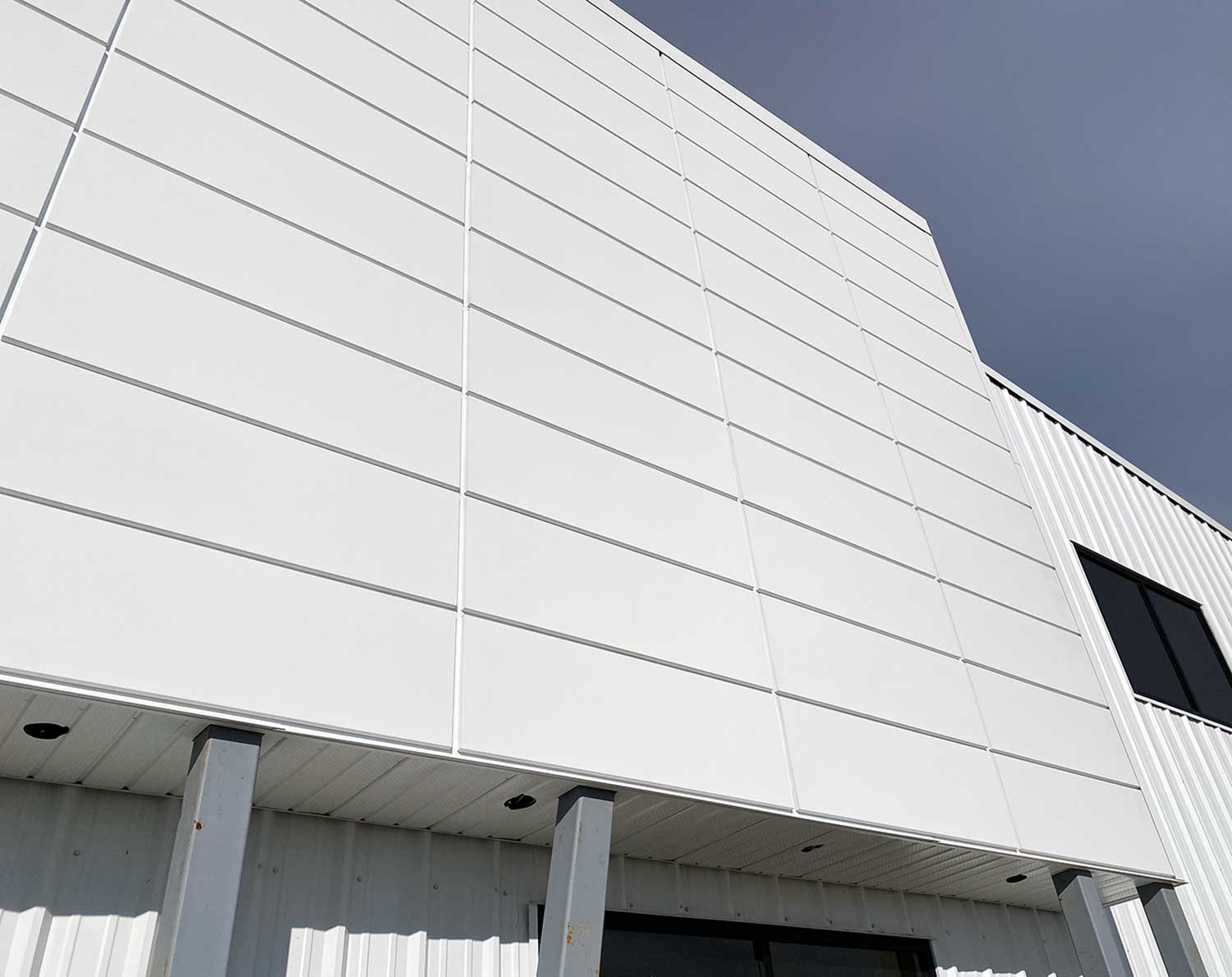

Modern Steel Large Format Wood Grain Modular Steel Siding
One-third less labor than ACM composite systems.
Modern Steel large format modular metal siding is a “segmented exterior panel system” of 24 gauge reinforced steel. A truly uncomplicated system that eliminates pre-measurements and fabrication delays. Half the labor and material cost.
Large format woodgrain modular steel siding can be cut and modified on-site to create the perfect fit without the need for additional sub-structures. One-inch horizontal reveals are integrated into the hidden fastener design while vertical reveals are achieved with a transition trim. Once the panels have been folded, rigid foam is securely bonded to the back giving the panel the strength and support allowing for large flat and smooth panel faces.
